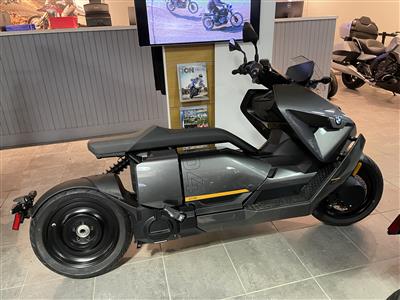

BMW CE 04 2022
MAGELLAN GREY METALLIC WITH 57
- ABS Pro
With a maximum output of 42 hp, the new BMW CE 04 has a powerful motor for an exciting riding
experience. A maximum speed of 75 mph means the CE 04 is ready not only for the city but for highways as
The new BMW CE 04 has a battery cell capacity of 60.6 Ah (8.9 kWh), providing an estimated range of 80 miles.
Automotive-based Charging Technology
The 147.6-volt lithium-ion battery is charged via the integrated charging device, either via a Level 1 household socket,
a Level 2 wallbox or a Level 2 public charging station. The charging socket is based on automobile standards and is
located underneath a cover in the front right-hand leg area. A storage compartment on the right-hand side of the
vehicle can house the standard Level 1 charging cable. If the BMW CE 04 is equipped with the optional Level 2 quick
charging cable, charging times are significantly reduced. A DC-DC converter converts high voltage to low voltage so as
to feed the 12-volt vehicle power system, the 12-volt battery (12 V/5 Ah) and the control units.
Charging times for 0 to 100 percent battery capacity, take 4 hours and 20 minutes with the supplied Level 1 (2.3 kW)
charging cable. With the optional Level 2 charging cable (6.9 kW) charging time is reduced to just 1 hour and 40
minutes. From 20 to 80 percent, the charging time is just 45 minutes with the Level 2 charging cable.
Standard 10.25” TFT Color Screen with Integrated Map Navigation
The new BMW CE 04 comes equipped with a standard 10.25-inch TFT color display screen with integrated map
navigation and smartphone connectivity. Its excellent readability and clear menu navigation put the new BMW CE 04 at
the top of the scooter segment. For the first time, the new 10.25-inch color display makes it possible to display a
navigation map in the instrument cluster, so no additional navigation display is needed.
The display can be used in full screen mode or, alternatively, in a split-screen view which allows several functions to be
shown simultaneously. The main display – the “Pure Ride Screen” – shows the speedometer along with the basic functions and selection menu. The navigation map is displayed if navigation is active via the BMW Motorrad Connected
app. The additional split screen shows either the on-board computer, the on-board trip computer, arrow navigation, a
current phone call or media.
With its 10.25-inch TFT color screen provides the perfect platform for using a full interactive map view in conjunction
with the navigation system of the BMW Motorrad Connected App. The navigation map is “mirrored” onto the screen via
wireless LAN. As such, the new BMW CE 04 offers an unprecedented dimension of map navigation. The 10.25-inch
TFT color screen allows a particularly wide range of integrated navigation options to be operated via the Multicontroller.
Thanks to the smartphone-based architecture, navigation is always on board: it couldn’t be simpler to make route
changes during a coffee break or share a route with friends.
The smartphone app provides the rider of the new BMW CE 04 with the latest navigation software and maps on an
ongoing basis, as well as offering the latest functions. The app allows maximum planning flexibility: it can be used for
route planning itself, importing planned routes from Basecamp or downloading route suggestions from websites.
