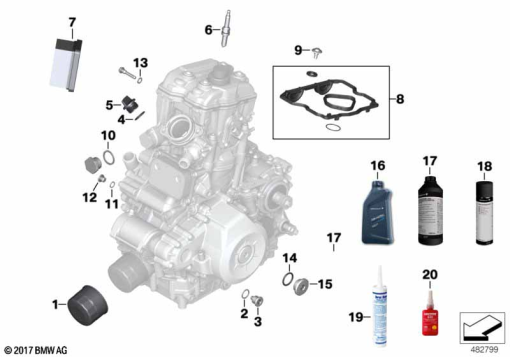

# | Part Number | Description | lb | Qty | Each |
01 | 11 42 8 562 889 | OIL FILTER | 0.31 | 1 | $18.40 |
|
02 | 07 11 9 963 252 | GASKET RING - A16X20-AL | | 1 | $1.88 |
| Oil plug seal ring, aluminum, 16 x 20.
|
|
03 | 11 13 7 720 999 | SCREW PLUG, MAGNETIC - M16X1,5-ZNNIV (to 04/23) | 51.81 | 1 | $22.12 |
|
03 | 07145A71AF9 | SCREW PLUG. MAGNET - M16X1,5 | | 1 | $23.63 |
04 | 11 43 8 562 876 | O-RING - 21,5X2 | | 1 | $3.09 |
|
05 | 11 43 8 562 877 | SCREW PLUG - M24X2 | 0.02 | 1 | $5.64 |
|
06 | 12 12 7 719 772 | SPARK PLUG - NGK LMAR9D-J | 73.04 | 1 | $24.83 |
|
07 | 13 71 8 556 564 | AIR FILTER ELEMENT | 0.12 | 1 | $20.09 |
|
08 | 11 12 8 566 404 | SET: GASKET SET, CYLINDER HEAD COVER | 0.12 | 1 | $61.03 |
09 | 11 12 8 562 743 | FLANGE SCREW - M6X15,5-8.8 | 0.02 | 4 | $4.65 |
10 | 11 31 8 559 183 | GASKET RING - 24X30X2 | | 1 | $2.76 |
|
11 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | | 1 | $0.39 |
| Seal ring, A10 x 13.5mm, aluminum. Replacement recommended if disassembled.
|
|
12 | 11 12 8 562 726 | SCREW PLUG, INNER HEXAGON - M10X1X9-ZNNIV | 0.02 | 1 | $12.00 |
13 | 07 11 9 903 546 | GASKET RING - A8X13X1-AL | | 1 | $0.65 |
|
14 | 11 13 8 562 767 | O-RING - 22,7X3,1 | | 1 | $4.02 |
|
15 | 11 13 8 562 766 | SCREW PLUG - M26X1,5 | 42.55 | 1 | $12.00 |
16 | 83 21 2 365 963 | MOTOR OIL ADVANTEC 15W-50 - 1L | | X | $17.50 |
|
16 | 83 21 2 365 958 | MOTOR OIL ADVANTEC 5W-40 - 1L | 2.00 | X | $18.50 |
|
17 | 83 51 2 445 463 | RADIATOR/ANTIFREEZE/ANTI-CORROSION AGENT - 1,5L (to 09/13) | 3.71 | X | NA |
| 83512445463 was superseded by 83515A87B45.
|
|
17 | 83515A87B45 | RADIATOR ANTIFREEZE - 1,5L (to 09/13) | | X | NA |
17 | 83 51 2 355 290 | ANTI-FREEZE - 1,5L (to 03/22) | 3.64 | X | NA |
17 | 83515A6CDD7 | RADIATOR ANTIFREEZE - 1,5 LITER | | X | NA |
17 | 83515A6CDD8 | RADIATOR ANTIFREEZE - 60 LITER | | X | NA |
18 | 83195A23100 | BRAKE CLEANER, ACETONE-FREE - 500ML | | X | NA |
FOR VEHICLES WITH NATIONAL VERSION CHINA (CODE: Y770A) : |
18 | 83195A260A8 | BRAKE CLEANER, ACETONE-FREE - 500ML | | X | NA |
19 | 83 19 0 404 517 | LOCTITE 5970 LIQUID SEALANT - 50ML | 0.16 | X | $32.39 |
|
20 | 83 19 2 210 339 | THREAD LOCK, MEDIUM-STRENGTH - 10ML | 0.02 | X | $31.20 |
| Loctite 243 Liquid Seal. Designed for the locking and sealing of threaded fasteners which require normal disassembly with standard hand tools. The product cures when confined in the absence of air between close fitting metal surfaces and prevents loosening and leakage from shock and vibration. Particularly
suitable for applications on less active substrates such as stainless steel and plated surfaces, where disassembly with hand tools is required for servicing.
|
|
