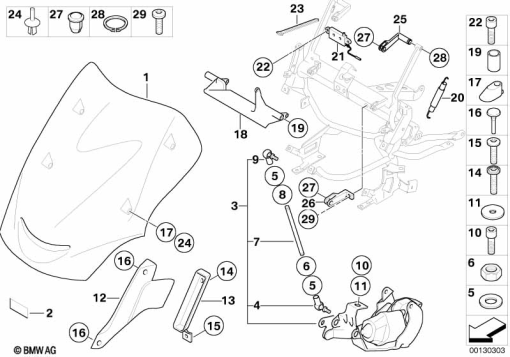

46_0814 - WINDSHIELD ADJUSTMENT, ELECTR.

Part Number

Description

Qty

Each

46 63 7 663 115

WINDSHIELD, HIGH

2.91

$351.00

71 21 2 346 071

LABEL

46 63 7 663 204

WINDSHIELD ADJUSTMENT WITH ELECTR. MOTOR

3.17

46 63 7 664 019

JOINT HEAD M6 LEFT (INTERNAL THREAD)

0.06

07 11 9 904 202

WASHER - A6,4-ZNNIV SI

$9.68

Washer 6.4mm.

07 11 9 903 561

HEX NUT - M6-04-2-ZNS

46 63 7 663 212

THREADED ROD

0.18

07 11 9 904 523

HEX NUT - M6-A2-70

$3.27

46 63 7 663 176

JOINT HEAD M6 (INTERNAL THREAD)

0.06

07 12 9 903 745

ISA Screw

0.02

$2.16

07 12 9 904 064

ISA SCREW - M8X20-MK-ZNS3

0.02

$2.64

This part has been replaced by #07129903745

07 11 9 903 292

WASHER - 8,4-140 SW

0.01

$3.12

46 63 7 661 227

COVER PANEL OUTER LEFT - WHITEALU-MET.

0.13

46 63 7 661 228

COVER PANEL OUTER RIGHT - WHITEALU-MET.

0.13

46 63 7 661 229

COVERING INNER LEFT - WHITEALU-MET.

0.06

$122.49

46 63 7 661 230

COVERING INNER RIGHT - WHITEALU-MET.

0.06

32 71 7 655 785

OVAL HEAD SCREW - M5X28

0.01

$9.95

54 10 7 157 534

FILLISTER HEAD SCREW - M5X28

0.01

$5.53

46 63 2 325 998

FLANGED CAP SCREW - M5X16SW (to 07/05)

0.01

46632325998 was superseded by 46632758504.

07 14 2 758 504

OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - ISA M5X16

0.01

$2.00

46 63 7 659 347

BUMP STOP

$5.70

46 63 7 670 500

INSERT F WINDSHIELD

$6.32

46 63 7 670 508

SHAFT

0.86

$171.73

46 63 7 670 504

BUSHING

$8.42

46 63 7 670 505

SPRING

0.05

61 31 7 672 092

MICROSWITCH

0.03

$86.04

71 60 7 675 750

SCREW - M4X10

$1.53

61 13 1 372 391

CABLE TIE - L=100MM/B=2,5MM

$0.91

46 63 7 670 506

EXPANDING RIVET

$4.98

46 63 7 653 389

LEVER

0.04

$80.81

46 63 7 658 866

LEVER

0.02

$82.46

46 63 2 307 841

$6.92

07 11 9 934 035

LOCK RING - 8X0,8

$5.14

Circlip 8 x 0.8mm.

Part interchanges with 07 11 9 934 034

07 11 9 907 616

FILLISTER HEAD SCREW - M4X10-4.8-H

0.01

$2.28
