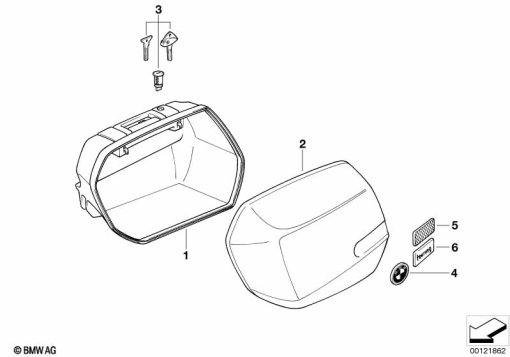

| # | Part Number | Description | lb | Qty | Each |
| 01 | 46 54 7 679 857 | HOUSING BOTTOM LEFT | 3.41 | 1 | NA |
| Comes with gasket and luggage straps only.
|
|
| ONLY APPLIES TO : |
| 01 | 71 60 7 669 894 | HOUSING BOTTOM RIGHT | 3.99 | 1 | NA |


| Comes with gasket and luggage straps.
|
|
| -- | 46 54 2 307 620 | SET: MULTI-PURPOSE BOX | 3.03 | X | NA |


| NOTE: This item includes the latch that holds the bag to the bike, the two latches that hold the lid closed to the inner bag, and the hardware necessary to mount it to the inner bag. Applies to both city system cases and standard system cases. Lock cylinder sold separately. See attached PDF file on repair.
|
|
| 02 | 46 54 2 337 019 | LEFT CITY SYSTEM CASE LID - BLACK | 1.51 | 1 | NA |

| NOTE: These do not come w/roundels or reflectors.
|
|
| 02 | 46 54 2 337 020 | RIGHT CITY SYSTEM CASE LID - BLACK | 1.51 | 1 | NA |

| NOTE: These do not come w/roundels or reflectors.
|
|
| 02 | 46 54 7 672 187 | COVER LEFT - GRAYGREEN-MET. | 3.24 | 1 | NA |
| 02 | 46 54 7 672 188 | COVER RIGHT - GRAYGREEN-MET. | 3.24 | 1 | NA |
| 02 | 46 54 7 672 467 | COVER LEFT - ORIENTBLUE-MET. | 3.24 | 1 | NA |
| 02 | 46 54 7 672 468 | COVER RIGHT - ORIENTBLUE-MET. | 3.24 | 1 | NA |
| 02 | 46 54 7 686 317 | COVER LEFT - TITANSILVER | 3.24 | 1 | NA |
| 02 | 46 54 7 686 318 | COVER RIGHT - TITANSILVER | 3.04 | 1 | NA |
| 02 | 46 54 7 687 787 | COVER LEFT - PIEMONTROT-MET. | 3.05 | 1 | NA |
| 02 | 46 54 7 687 788 | COVER RIGHT - PIEMONTROT-MET. | 3.32 | 1 | NA |
| 02 | 71 60 7 652 735 | LID, LEFT, LARGE, FOR SYSTEM CASE - CA.6L | 4.02 | 1 | NA |
|
| ONLY IN CONJUNCTION WITH : |
| -- | 71 60 7 657 481 | IMPACT PROTECTION, LARGE LEFT | 0.19 | 1 | NA |
| -- | 63 14 8 529 372 | REAR REFLECTOR RED | 0.03 | 1 | $16.38 |
|
| -- | 46 54 2 300 134 | REAR REFLECTOR YELLOW | 0.03 | 1 | $16.38 |
|
| 02 | 71 60 7 652 736 | LID, RIGHT, LARGE, FOR SYSTEM CASE - CA.6L | 4.02 | 1 | NA |
|
| ONLY IN CONJUNCTION WITH : |
| -- | 71 60 7 657 482 | IMPACT PROTECTION, LARGE RIGHT | 0.19 | 1 | NA |
|
| -- | 63 14 8 529 372 | REAR REFLECTOR RED | 0.03 | 1 | $16.38 |
|
| -- | 46 54 2 300 134 | REAR REFLECTOR YELLOW | 0.03 | 1 | $16.38 |
|
| 03 | 51 25 2 307 617 | SET: SET OF SUITCASE LOCKS WITH CODE | 0.16 | 1 | NA |
| | Needs to be coded/programmed by your dealer.
|
|
| 03 | 51 25 2 307 618 | SET: SET OF SUITCASE LOCKS | 0.19 | 1 | $85.00 |
|
| 04 | 46 54 2 300 045 | BADGE | 0.02 | 1 | $62.11 |


| 41.5mm in diameter, and is flat. Peel and stick adhesive on the back side.
|
|
| 05 | 46 54 2 300 134 | REAR REFLECTOR YELLOW | 0.03 | 2 | $16.38 |
|
| FOR VEHICLES WITH NATIONAL VERSION SWITZERLAND (CODE: Y731A) : |
| 05 | 63 14 8 529 372 | REAR REFLECTOR RED | 0.03 | 2 | $16.38 |
|
| 06 | 46 54 2 300 046 | EMBLEM - TOURING | 0.04 | 2 | NA |
|
