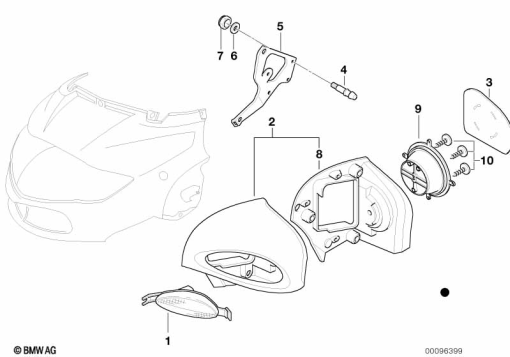

| # | Part Number | Description | lb | Qty | Each |
| 01 | 63 13 2 306 433 | LEFT TURN INDICATOR | 0.21 | 1 | $74.21 |
| This part comes with the socket and bulb.
|
|
| 01 | 63 13 2 306 434 | RIGHT TURN INDICATOR | 0.21 | 1 | $74.21 |
| 02 | 46 63 2 313 715 | LEFT PRIME COATED MIRROR | 1.09 | 1 | $334.19 |

| When purchasing this PN, it comes with the turn indicator assembly.
|
|
| 02 | 46 63 2 313 716 | RIGHT PRIME COATED MIRROR | 1.10 | 1 | $334.19 |
| When purchasing this PN, it comes with the turn indicator assembly.
|
|
| 03 | 46 63 7 652 611 | LEFT MIRROR GLASS - 1400MM | 0.18 | 1 | $102.81 |
|
| 03 | 46 63 7 652 612 | RIGHT MIRROR GLASS - 1400MM | 0.18 | 1 | $102.81 |
|
| 04 | 46 63 2 313 403 | PIN | 0.02 | 6 | $5.32 |
| 05 | 46 63 7 652 669 | LEFT SUPPORTING PLATE | 0.24 | 1 | $74.51 |
| 05 | 46 63 7 652 670 | CARRIER PLATE, RIGHT | 0.24 | 1 | $74.51 |
| 06 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | | 6 | $2.71 |
|
| 07 | 07 12 9 904 475 | HEX NUT - M5-8-ZNNIV SI | | 6 | $17.92 |
|
| 08 | 46 63 2 352 121 | BASE PLATE LEFT | 0.27 | 1 | $94.97 |
|
| 08 | 46 63 2 352 122 | BASE PLATE RIGHT | 0.26 | 1 | $94.97 |
| 09 | 51 16 7 717 775 | ADJUSTER UNIT | 0.10 | 2 | $59.47 |
|
| 10 | 46 63 7 652 613 | SCREW | | 6 | NA |
|
| 10 | 46 63 7 652 614 | SCREW - KB 40X12 | | 8 | NA |
