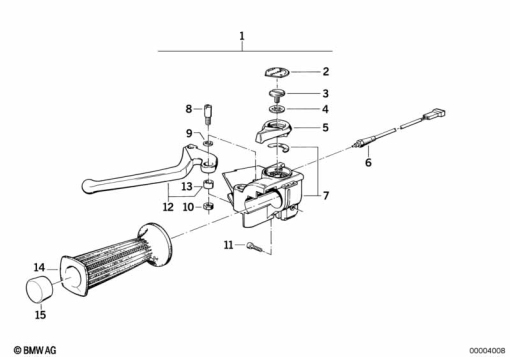

| # | Part Number | Description | lb | Qty | Each |
| 01 | 32 72 1 457 069 | HANDLE UNIT LEFT | 0.69 | 1 | $255.08 |
|
| 02 | 32 72 1 451 975 | CAP | | 1 | $16.15 |
| Choke lever cap. Light glue recommended if loose.
|
|
| 03 | 07 11 9 907 430 | SAUCER-HEAD SCREW - M6X12 | 0.02 | 1 | $8.36 |
|
| 04 | 32 72 1 240 791 | WASHER - 1,200MM | | 1 | NA |
|
| 05 | 32 72 1 240 792 | LEVER FOR CHOKE | 57.32 | 1 | NA |
| 06 | 61 31 1 459 569 | SWITCH | 71.32 | 1 | $64.99 |
| Stop light switch, R65; R80; R100RS, R100RT, K75 - K100, R850 - R1150. Brake/clutch switch on some models. Thread size 8x1.0mm switch, includes attached harness and rubber boot.
|
|
| 07 | 32 72 1 457 962 | HOUSING | 0.41 | 1 | $103.90 |
|
| 08 | 32 72 1 451 749 | SCREW - M6 | 0.02 | 1 | $24.41 |
|
| 09 | 32 72 1 230 871 | WAVE WASHER | | 1 | $1.28 |
| Magura spring washer.
|
|
| 10 | 32 72 8 532 969 | NUT, SELF-LOCKING - M6 | | 1 | $9.58 |
|
| 11 | 07 11 9 919 906 | FILLISTER-HEAD SCREW - M5X16-Z4-8.8 | 0.01 | 1 | $13.52 |
|
| 12 | 32 72 1 451 700 | HAND LEVER, BLACK, LEFT | 0.17 | 1 | $91.65 |
| When purchasing this lever, the pivot bushing is included.
|
|
| 13 | 32 72 1 451 796 | BUSH | | 1 | $9.73 |
| Magura bush.
|
|
| 14 | 32 72 1 237 811 | RUBBER GRIP LEFT SQUARE | 0.19 | 1 | $21.28 |
| Magura handle bar rubber grip LHS, R60/7 - R100RT. BMW lengthwise groove, closed end.
|
|
| 14 | 32 72 1 453 163 | RUBBER GRIP LEFT ROUND | 0.15 | 1 | $21.28 |
|
| 15 | 32 72 1 457 399 | CAP LEFT | | 1 | NA |
