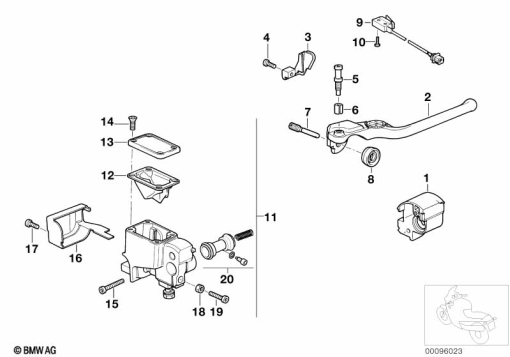

32_0784 - HANDLE UNIT RIGHT/SINGLE PARTS

#	Part Number	Description	lb	Qty	Each
01	32 72 2 310 750	HOUSING	167.55	1	NA
FOR VEHICLES WITH OFFICIAL VEHICLES :
01	32 72 2 332 020	HOUSING	158.73	1	NA
ONLY IN CONJUNCTION WITH :
--	32 72 2 330 002	LOCKING BOLT	0.02	1	NA
02	32 72 2 314 072	HAND LEVER, ADJUSTABLE, BLACK, RIGHT	0.32	1	$153.26
NON adjustable lever is NLA (no longer available).
03	32 72 2 310 752	COVER	0.01	1	NA
04	32 72 2 351 537	COUNTERSUNK SCREW - M5X16	0.01	1	$4.86
05	32 72 2 310 753	SCREW	36.82	1	$25.92
06	32 72 2 310 754	BUSH		1	$9.23
07	32 72 2 310 755	SCREW	24.67	1	$22.08
08	32 72 2 310 756	RUBBER BOOT	4.50	1	$11.38
Bellow.
09	61 31 1 459 870	FRONT STOP LIGHT SWITCH	51.04	1	$53.76
10	32 72 2 333 066	FILLISTER-HEAD SCREW - M2X12 4.8 (to 12/02)		1	NA
32722333066 was superseded by 32729907425.
10	07 11 9 907 425	COUNTERSUNK SCREW - M2X12-8.8-MK		1	$6.91
11	32 72 2 352 190	SET: CYLINDER WITH PISTON, ANODIZED - D=20MM	0.80	1	$634.09
12	32 72 2 312 421	RUBBER BOOT	0.03	1	$27.76
13	32 72 2 312 422	COVER	65.70	1	$53.01
14	32 72 2 351 535	COUNTERSUNK HEAD SCREW - M5X16		4	$5.83
15	32 72 2 311 147	SCREW	0.01	1	$4.30
16	32 72 2 310 757	COVER	0.03	1	$24.69
17	63 12 2 313 509	FILLISTER HEAD SCREW - M5X12	0.01	1	$15.53
18	32 72 2 311 141	NUT	0.01	1	$4.26
.
19	32 72 2 311 502	COUNTERSUNK HEAD SCREW - M6X20	0.01	1	$6.17
.
20	32 72 2 332 037	REPAIR KIT, PISTON, ANODIZED - D=20MM	0.05	1	$138.09
Repair kit brake piston,Ø=20mm, K1; K100RS - K1100LT; R850R - R1100RS.
ONLY APPLIES TO :
--	32 72 2 352 190	SET: CYLINDER WITH PISTON, ANODIZED - D=20MM	0.80	X	$634.09
